Neitabond-Nano

Neitabond-Nano

NEITABOND NANO PVDF aluminum composite panel is coated with special NANO PVDF coating with excellent self-cleaning feature. It’s widely used in office buildings, shopping centers, industry building, airports, gas stations, such as air pollution requirements on the high places.

Neitabond NANO coated aluminum composite panels are produced using a new and exciting NANO PAINT technology. A clear water soluble NANO coat is applied over our 2 or 3 coat PVDF coating to enhance the performance of the coated panels weatherability and durability resulting in longer color and gloss retention. The nano coating changes the molecular structure of the paint by sealing off any air gaps between connecting molecules making the surface both lipophobic and hydrophobic (oil and water Resistant) This prevents dirt, water, permanent spray paint, carbon monoxide, grease, oil or any foreign particles to penetrate through the paint surface. In addition, the NANO coating is a non-toxic, VOC EMISSION FREE coating system, which makes the surface self –cleaning and repellent to air-borne pollutants.

Nano 插图1 Nano 插图2

Neitabond-Nano

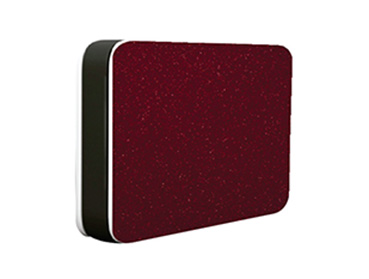

Click the colour surface to change the view.

Soft white or bright red? Solid colours are always a good choice when a uniform appearance without special effects is required.

color_list11 color_list3 color_list4 color_list11 color_list9 color_list7 color_list3 color_list6
color_list11

For exact colour matching,

Please contact us.
color_list3

For exact colour matching,

Please contact us.
color_list4

For exact colour matching,

Please contact us.
color_list11

For exact colour matching,

Please contact us.
color_list9

For exact colour matching,

Please contact us.
color_list7

For exact colour matching,

Please contact us.
color_list3

For exact colour matching,

Please contact us.
color_list6

For exact colour matching,

Please contact us.

Raw material:

Base material: high strength aluminum alloy sheet

PE core material: non-toxic low density polyethylene

Surface coating: NANO PVDF coating

Back coating: primer coating

Product properties

Excellent easy-cleaning

Pollution resistance

Oil resistance

Good friction resistance

Strong acid & alkali resistance

Outstanding weather resistance

APPLICATIONS:

Wall curtain, Cladding and Facade

Roof edges and Parapet wall

Dado, Separation wall and Partition

Interior wall, Ceiling, Bathroom, Kitchen and Balcony

Advertisement boards, display platforms and signboards

Column covers and Beam wraps

Industrial materials, vehicle and boat materials


Aluminum alloy AA1100  AA3003
Aluminum skin 0.21mm,0.30mm,0.35mm,0.40mm,0.45mm,0.5mm
Panel thickness 3mm,4mm,5mm,6mm
Panel width 1220mm,1250mm,1500mm
Panel length 2440mm,3050mm,4050mm
Surface treatment NANO PVDF
Colors70 colors, special colors available upon request
Customers sizeaccepted
GLOSSY30%-50%

Panel width: ±2mm

Panel length:±3mm

Panel thickness: ±0.2mm

Panel diagonal: ≤5mm

Aluminum sheet thickness: ±0.02mm

Description Test standard NANO PVDF
Thickness of coating PVDF paint≧34um35um to 37um
Coating flexibility (T-bend)Polyester paint≥2T2T
Color different ΔE≦2.0(follow color sample)ΔE<2.0
Pencil hardnessISO 15184:1998 Section 105H
Chemical resistance

5%HCI or 5% NaOH test in

24 hours -No change

No change
Coating adhesionISO 15184:1998 Section 6

The edges of the cut are

completely smooth

,none of the square of the

lattice is detached.

Resist solvent No change for 200 times(MEK)No change
Boiling water resistance EN438-2:2005 Section 12

Rating 5,no visible change.

Average change of mass:

 0.08%;Average change of thickness:1.36%

Peeling strength/

stripping strength

BS EN319:19932.4N/mm2
Impact test for paint ISO6272-1:2002 Section 8

The coating not crack or peel after

 2kg weight ball dropped from 1.5m height

Abrasion resistance

(L/Mil)

ISO7784-2:1997 Section 8

The abrasive rubber wheel:

Taber H-22;

 the cycles number:100;

the mean loss mass:91mg

Temperature resistance EN438-2:2005 Section 19Rating 4, change of gloss only

Coefficient of linear

Thermal Expansion

ISO11359-2;1999 Section 71.3x10-4K
Detergent resistance (3%)ASTM D2248No change

Humidity Resistance

(3000hrs,100%RH,100°F)

ASTM D2247No change

Salt spray resistance

(3000hrs,5% salt)

ASTM B117No change
Resistance to Staining EN438-2:2005 Section 26Rating 5,no visible change
