Neitabond-Signage

Neitabond-Signage

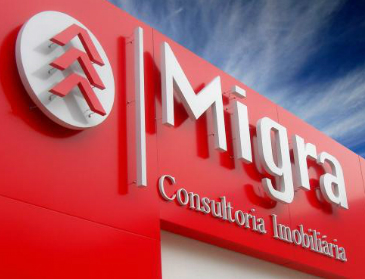

Due to a variety of superiorities, the Neitabond Signage  has already become the most applicable material for the metal curtain wall, one of the top three kinds of curtain walls (natural stone, glass curtain wall and metal curtain wall) and is widely used in constructions of advertising signage.

NEITABOND Signage grade aluminum composite panel is coated with a high-performance polyester lacquer which is weather resistance .It is very suitable for screen -printing flat digital printing ,the application of adhesive film, and post-painting using the liquid spray technique.

Neitabond signage插图1_副本 Neitabond signage插图2_副本

Neitabond-Signage

Click the colour surface to change the view.

Soft white or bright red? Solid colours are always a good choice when a uniform appearance without special effects is required.

color_list1 color_list3 color_list7 color_list9 color_list11 color_list4 color_list2
color_list1

For exact colour matching,

Please contact us.
color_list3

For exact colour matching,

Please contact us.
color_list7

For exact colour matching,

Please contact us.
color_list9

For exact colour matching,

Please contact us.
color_list11

For exact colour matching,

Please contact us.
color_list4

For exact colour matching,

Please contact us.
color_list2

For exact colour matching,

Please contact us.

High resistance to peeling

Superior weather resistance

Light weight and easy to process

Coating evenness

Diversified colors

Easy for maintenance

Impact resistance

Aluminum alloy AA1100 series
Aluminum skin 0.15mm,0.18mm,0.21mm,0.30mm,0.40mm,0.5mm
Panel thickness 3mm,4mm
Panel width 1220mm,1250mm,1500mm
Panel length 2440mm,3050mm,4050mm
Surface treatment UV digit printing
Glossy20%-80%

Dimensional tolerance:

Panel width: ±2mm

Panel length:±3mm

Panel thickness: ±0.2mm

Panel diagonal: ≤5mm

Aluminum sheet thickness: ±0.02mm

Description Test standard Polyester
Thickness of coating Polyester paint >=16um16um to 18um
Coating flexibility (T-bend)Polyester paint≥3T3T
Color different ΔE≦2.0(follow color sample)ΔE≦2.0
Pencil hardness≧HB≧2H
Chemical resistance 2%HCI or 2%NaOH test in 24 hours -No change No change
Coating adhesion≧1grade for 10810mm2gridding test1grade
Resist solvent 100times with Dimethylebnzene without changeNo change
Boiling water resistance 2 hours without change No change
Peeling strength/stripping strength

Average ≧5N/mm of 180oc peel off

 for panel with 0.21mm alu.skin

5N/mm
Impact test for paint 20KG.cm impact-paint no split for panel No split
Abrasion resistance (L/Mil)NILNIL
Temperature resistance

-40℃ to +80℃ temperature without

change of color difference

 and paint peel off,peeling

strength average dropprate≦10%

Change of glossy only,no paint
Peel off
Cofficient of linear Thermal Expansion 100℃ temperature difference 2.4mm/n
Detergent resistance (3%)ASTM D2248No change
Humidity Resistance (3000hrs,100%RH,100°F)ASTM D2247No change
Salt spray resistance (3000hrs,5% salt)ASTM B117No change
Resistance to Staining

600h radiate in 800W/M2 in humidity condition

,glossiness deviation less grade 2,color difference ≦4.0

No change
