Neitabond-Marble

Neitabond-Marble

Neitabond Marble vividly imitate the subtle texture of marble and easy to clean surface, can be directly wiped with water once dust contamination, with recyclable, anti corrosion features, it is belong to green and environmentally-friendly building materials, has long service life and wear resistance.

All the designs can be made to PVDF, stereo and anti scratch effect.

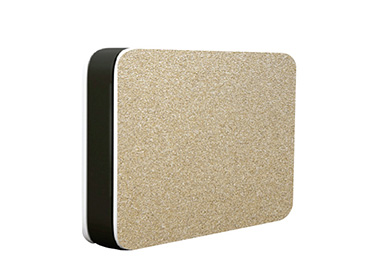

Marble grain aluminum composite panel is coated with PE(polyester) coatings or PVDF(fluorocarbon) coatings and comes with a great variety of marble grains for customer to choose from.

缩略图1 缩略图2

Neitabond-Marble

Click the colour surface to change the view.

Soft white or bright red? Solid colours are always a good choice when a uniform appearance without special effects is required.

大花白_0003_副本_副本 大花红_0003_副本_副本 啡网_0003_副本_副本 啡钻_0003_副本_副本 黑金花_0003_副本_副本 红线米黄_0005_副本_副本 加纳金麻_0003_副本_副本 金花米黄_0003_副本_副本 挪威红_0003_副本_副本 星光大理石_0003_副本_副本 印度红_0003_副本_副本 紫罗红_副本_副本
大花白_0003_副本_副本

For exact colour matching,

Please contact us.
大花红_0003_副本_副本

For exact colour matching,

Please contact us.
啡网_0003_副本_副本

For exact colour matching,

Please contact us.
啡钻_0003_副本_副本

For exact colour matching,

Please contact us.
黑金花_0003_副本_副本

For exact colour matching,

Please contact us.
红线米黄_0005_副本_副本

For exact colour matching,

Please contact us.
加纳金麻_0003_副本_副本

For exact colour matching,

Please contact us.
金花米黄_0003_副本_副本

For exact colour matching,

Please contact us.
挪威红_0003_副本_副本

For exact colour matching,

Please contact us.
星光大理石_0003_副本_副本

For exact colour matching,

Please contact us.
印度红_0003_副本_副本

For exact colour matching,

Please contact us.
紫罗红_副本_副本

For exact colour matching,

Please contact us.

Economy

High resistance to peeling

Superior weather resistance

Light weight and easy to process

Excellent fire resistance properties

Coating evenness

Diversified colors

Easy for maintenance

Impact resistance

Surface coatingPVDF wooden coatingPolyester wooden coating
Aluminum alloyAA1100 seriesAA1100 series
Aluminum skin

0.25mm,0.30mm,0.35mm

,0.40mm,0.45mm,0.50mm

0.08mm,0.10mm,0.12mm, 0.15mm,

0.21mm,0.25mm,0.30mm,

0.35mm,0.40mm,0.45mm,0.50mm

Panel thickness3mm ,4mm,5mm,6mm3mm, 4mm,5mm,6mm
Panel width1220mm 1250mm 1500mm1220mm,1250mm,1500mm
Panel length2440mm,3050mm,5000mm2440mm,3050mm,5000mm
Backing coatingPrimer coatingPrimer coating
Glossy20%-40%40%-70%

Dimensional tolerance:

Panel width: ±2mm

Panel length:±3mm

Panel thickness:±0.2mm

Panel diagonal: ≤5mm

Aluminum sheet thickness: ±0.02mm


Description Test standard Polyester
Thickness of coating Polyester paint ≥16um16um to 18um

Coating flexibility

(T-bend)

Polyester paint≥3T3T
Color different △E ≤ 2.0(follow color sample)ΔE ≤ 2.0
Pencil hardness≥HB≥2H
Chemical resistance

2%HCI or 2% NaOH test in

24 hours -No change

No change
Coating adhesion≥ 1grade for 10810mm2gridding test1grade
Resist solvent 100times with Dimethylebnzene without changeNo change
Boiling water resistance 2 hours without change No change

Peeling strength/

stripping strength

Average ≥5N/mm of 180oc peel

off for panel with 0.21mm alu.skin

5N/mm
Impact test for paint 20KG.cm impact-paint no split for panel No split
Abrasion resistance (L/Mil)NILNIL
Temperature resistance

-40℃ to +80℃ temperature without

change of color difference

 and paint peel off,peeling strength

average drop rate≤10%

Change of glossy only, no paint
Peel off

Coefficient of linear

Thermal Expansion

100℃ temperature difference 2.4mm/n
Detergent resistance (3%)ASTM D2248No change

Humidity Resistance

(3000hrs,100%RH,100°F)

ASTM D2247No change

Salt spray resistance

(3000hrs,5% salt)

ASTM B117No change
Resistance to Staining

600h radiate in 800W/M2 in

humidity condition,glossiness

 deviation less grade 2,

color difference ≤4.0

No change
